How to Perfectly Align Your Screw and Barrel Extruder Setup

Mastering the Basics of Screw and Barrel Extruders

Key Components of a Screw and Barrel Extruder

Screw and barrel extruders play a crucial role in the development of plastic products through manufacturing processes. Coordination between the two elements is paramount in ensuring that the extrusion process is not only efficient but also durable. CHUANGRI SCREW stands out owing to its competence in screw and barrel technology as well as its ability to come up with quality parts that play a crucial role in the process.

The Role of the Screw in CHUANGRI SCREW’s Extruders

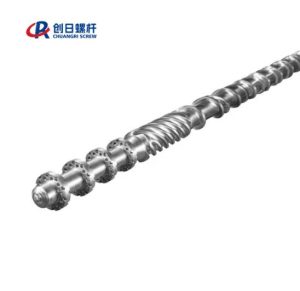

The core component of any extruder system is the screw, which is engaged in the efficient transportation of solids and proper melting, together with metering or pumping operations, being realized effortlessly. CHUANGRI SCREW has led in screw design for the satisfaction of different industry requirements. The specially designed screws offered by CHUANGRI SCREW are meant to maximize the efficiency of your injection molding or your extrusion process. They can be utilized with any machine model or brand thus offering companies with unmatched flexibility in operations. The PPR Pipe Extruder High-Speed Screw is used for the occasions like Pipe Extruders or PP/PPR/PPB Pipes.

The manufacturing process at CHUANGRI SCREW focuses on achieving accuracy in each step of the way. Through transforming steel rods into bars and adding durable carbide alloys into deeply grooved spiral patterns with precision; every aspect is carefully executed. The screws are meticulously polished to eliminate flaws so that plastic doesn’t stick to surfaces while in use. This results in end-product quality and top-notch performance.

The Importance of the Barrel in CHUANGRI SCREW’s Design

The barrel has the function of holding the screw and aiding in heat transfer for processing materials efficiently and effectively. The barrel serves as a critical structural and functional component in CHUANGRI SCREW’s systems. Its design integrates a cylinder base/cap to securely enclose one end of the barrel while providing a stable mounting interface for assembly. At the opposite end, the cylinder head ensures robust sealing through specialized rod arrangements, preventing leaks and maintaining operational integrity under pressure. This precision engineering supports diverse applications—from industrial machine screws to linear actuation systems—by ensuring alignment, durability and efficient force transmission.

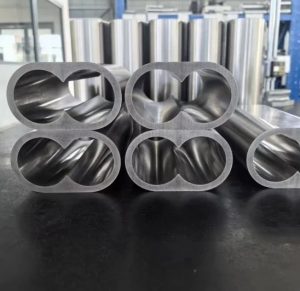

CHUANGRI SCREW’s barrels are designed with state-of-the-art materials like coatings and nitriding techniques to improve durability and prolong their lifespan. The Bimetallic SKD Liner Barrel uses SKD technology. SKD is a revolutionary bimetallic liner designed for conical co-rotating segmented barrels. It provides an indestructible seamless barrier, laser-welded to the inner surface of the barrel segments. SKD technology offers the strength, wear resistance, and corrosion resistance of bimetallic inserts, with a seamless finish at the apex using brazed compounds.

Why Alignment Matters in Extrusion Processes

Ensuring that the screw and barrel are properly aligned is essential for getting the results in extrusion operations. Misalignment—often caused by improper installation or external forces—leads to uneven stress distribution, accelerating wear on components like screws and barrels, as noted in defect analyses of aluminum profiles. This imbalance can cause defects such as delamination, surface irregularities or warping in extruded products.

Proper alignment plays a role in enhancing efficiency and the quality of products produced. When the screw barrel setup is aligned well it promotes melt flow and even distribution of temperature leading to decreased energy usage. Proper alignment minimizes defects such as delamination, surface cracking, or errors in dimensionality of extruded profiles. Accurate measurement and part placement ensure even distribution of materials, preventing deformations and improving surface smoothness.

CHUANGRI SCREW’s advanced blown film screws that operate at speeds can achieve a 20 percent increase in output compared to conventional designs while still ensuring precise control over melt temperature levels. These new developments demonstrate how proper alignment can significantly improve the performance of the system.

Steps to Achieve Precise Alignment with CHUANGRI SCREW’s Products

Preparation Before Alignment

Tools Recommended for Use with CHUANGRI SCREW’s Extruders

For positioning your screw and barrel extruder system using the correct tools is crucial. CHUANGRI SCREW provides a variety of top-notch parts designed for extrusion tasks. The items have barrels and nitrided screws that give the precision and ruggedness necessary for smooth operation.

CHUANGRI SCREW engineers its barrels using high-tech materials such as coatings and nitriding treatments to improve durability and lengthen the life of the barrel. These components make the barrels strong in adverse situations. For example, the bimetallic barrels consist of tungsten carbide particles uniformly distributed within a corrosion-resistant nickel alloy matrix that makes them extremely dependable for use periods.

During the installation of the screw in the barrel crucial tools such as dial indicators and torque wrenches come in handy to identify any misalignment and adjust the most precise level.

Safety Measures to Consider

Safety is crucial in the operation of screw and barrel extruders. When starting the alignment process to ensure that all the machinery is turned off and safely locked out to avoid any startups is crucial. Don’t forget to put on the personal protection gear, including gloves and safety goggles.

CHUANGRI SCREW prioritizes manufacturing quality checks in order to secure their products into strict safety guidelines. Their nitriding technique not only boosts heat endurance but also offers outstanding durability against wear and tear reducing the likelihood of unforeseen malfunctions while in use.

Step-by-Step Guide to Aligning CHUANGRI SCREW’s Extruder Barrels and Screws

Positioning the Screw Correctly within the Barrel

Ensuring the screw is positioned correctly in the barrel is crucial for getting the performance out of it. Start by cleaning both parts to get rid of any dirt or leftover material that might affect their alignment. Then use an indicator to check if the screw is straight along its entire length. After cleaning and examining the screw thoroughly, gently place it into the barrel while keeping an eye on its placement regularly. Make adjustments gradually using alignment tools to guarantee consistency across the arrangement. Utilizing a torque wrench can assist in achieving tightening of bolts without putting too much strain on any part.

Ensuring Uniform Clearance for Optimal Performance

Ensuring there is a gap between the screw and barrel is crucial to keep the material flow steady and avoid excessive wear and tear. Make sure to check the clearance at spots, along the barrel using either feeler gauges or micrometers.

If you notice any differences in the clearance levels during inspection adjust accordingly by relocating either part or swapping out components with CHUANGRI SCREW’s meticulously crafted replacements.

Maintenance Tips for Long-Lasting Performance of CHUANGRI SCREW’s Extruders

Upkeep and thorough examination are essential for keeping screw and barrel extruders operating at their best for a long time.

Inspecting Wear on Screws and Barrels

Regularly checking the condition of screws and barrels is essential for maintenance tasks in machinery upkeep. Products from CHUANGRI SCREW like their screws and bimetallic barrels are engineered to endure heavy wear and tear effectively. By undergoing the nitriding process these components gain improved stability and exceptional resistance against wear. Consistent inspection plays a role in promptly detecting any indications of wear such as surface irregularities or diminished thread depth at an early stage.

Monitoring Temperature Distribution

Maintaining a heat distribution throughout the barrel is crucial to ensure a smooth flow of materials and high-quality melt consistency. During inspections of the equipment barrels using infrared thermometers or thermal imaging cameras to track temperature changes across the entire length is recommended practice. It’s important to address any discrepancies in temperature distribution as they could signal potential misalignments or worn-out parts that need urgent fixing.

Frequently Asked Questions about Screw and Barrel Extruder

Q: What is the clearance between the extruder barrel and the screw?

A: Barrels are steel cylinders usually lined with a wear-resistant alloy. The clearance between the screw flights and the barrel on new screws is between 0.005 and 0.010 in. (0.125 to 0.25 mm), less for very small screws and more for very big ones.

Q: How to design a screw extruder?

A: Configuring/designing a screw for extrusion is a blend of art and science. A screw profile consists of different screw elements configured together on the screw shaft. The arrangement of these elements on the shaft depends on the process and material.

Q: How do you calculate screw extruder torque?

A: In the case of a twin-screw extruder, the output torque T=P*9550/n/2/1.05, and the other 2 is because the output torque is given to the two screws, and the torque of the single screw is calculated.

Q: How to align extruder barrels and screws?

A: The correct procedure involves using an optical or laser alignment scope inside the drive quill to align the barrel to a fixed center line by rotating the drive quill. The barrel and feed throat are then aligned to that center line by adjusting the barrel supports or the mounting faces of the feed throat.
