How Different Twin Screw Extruder Barrel Designs Impact Efficiency

Exploring the Role of Twin Screw Extruder Barrels in Performance

Key Functions of Twin Screw Extruder Barrels

The dual screw extruder barrels are essential in the extrusion process as they help maintain performance and efficiency levels efficiently. These barrels play a role in mixing materials melting them and conveying them effectively ensuring consistency and accuracy in the end product. They are elements in injection molding and extrusion techniques that contribute to shorter cycle durations better melt quality, and consistent melts. The dual screw barrel configuration is especially efficient when working with materials providing improved processing options and superior final product quality.

Factors Influencing Barrel Efficiency

The effectiveness of a twin screw extruder barrel is established by aspects such as the type of material used to make it and the precision with which its design is carried out to resist wear and tear with the elapse of time. High-quality materials such as 38CrMoAlA or SKD61 are utilized depending on their durability and corrosion resistance. The application of advanced manufacturing techniques such as nitriding or bimetal processing is accountable for extending the life of the barrel. Furthermore, the barrel and screw must be properly positioned for operation since this reduces friction and energy consumption.

A Closer Look at Conical Twin-Screw Barrels

Features of Conical Twin-Screw Barrels by CHUANGRI SCREW

Design Characteristics and Material Composition

CHUANGRI SCREW’s tapered dual screw barrels are designed to be efficient and adaptable in situations, such as the WPC Conical Twin-Screw Barrel. They are made with cutting-edge materials like 38CrMoAlA and SK61 to provide durability and stability in high temperatures. The bimetallic and SK61 inner lining tech enables the barrels to handle both new and recycled materials with calcium carbonate levels from 5% up to 300% making them versatile across different uses and increasing their longevity significantly.

Advantages in Processing Efficiency and Output Quality

The twin screw barrel with a shape provides many advantages when it comes to processing efficiency. Its distinct design improves the ability to melt and mix plastics while also controlling temperature accurately. In settings where there is any calcium carbonate content present the lifespan of the screw has been extended by more than 30%. Moreover, the barrel’s robust structure guarantees consistent quality output across various PVC product variants.

Applications and Benefits in Specific Industries

Conical double screw barrels play a role in sectors that manufacture WPC boards and foam boards along with SPC flooring and PVC pipes among other similar products. They are favored by manufacturers for their capacity to manage high calcium mixtures while maintaining top-notch performance which ensures durability and productivity.

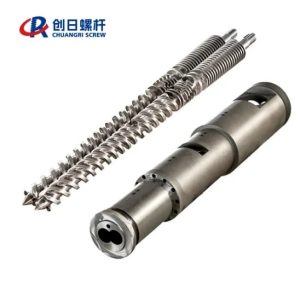

CHUANGRI SCREW’s conical twin screw barrels, such as the SPC Conical Twin-Screw Barrel, are crafted to maximize efficiency in manufacturing settings where large quantities are produced rapidly and require superior performance capabilities for optimal results in the creation process of uniform melt quality at fast production rates. Their distinctive shape aids in the blending of raw materials and enhances plastification to ensure consistent output by guaranteeing and maintaining precise temperature control through the utilization of advanced bimetal technology for enhanced material flow and quality during production processes.

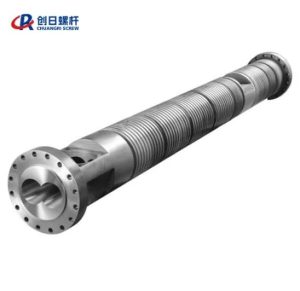

Parallel Twin-Screw Barrels: A Benchmark of Precision

CHUANGRI SCREW’s parallel twin screw barrels showcase top-notch extrusion technology boasting a crafted design that improves material flow and reduces shear stress effectively. The  Parallel Twin-Screw Barrel is built using high-quality materials such as NITRALLOY 135-M to guarantee wear resistance even in challenging environments.

The versatility of the Parallel Twin-Screw Barrel is seen in how it is used in different extrusion processes for making PVC pipes or profiles showing its knack for producing consistent melts and decreasing waste, which supports eco-friendly manufacturing practices.

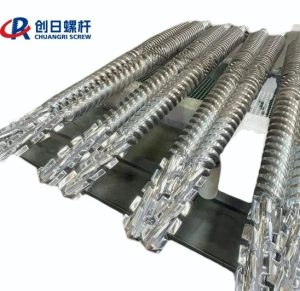

Bimetallic Twin Screw: Durability Redefined

The Bimetallic Twin-Screw from CHUANGRI SCREW has raised the bar when it comes to durability and performance levels in machinery equipment. By incorporating HVOF tungsten carbide coating technology these screws can deliver wear resistance while also maintaining precise dimensional accuracy. This advancement effectively tackles problems such as alloy detachment and peeling that often arise in applications dealing with abrasive or corrosive fillers.

The use of twin screws proves to be very efficient in applications that involve high calcium compounds or abrasive substances due to their sturdy design, which guarantees extended usability and consistent product excellence.

Choosing the Right Barrel Design for Optimal Results

Selecting an appropriate barrel design hinges on aligning its specifications with your production goals. Key considerations include material compatibility, size and throughput and mechanical demands.

Evaluating Needs Based on Production Requirements

Task-Specific Features: Prioritize designs that address your workflow’s unique demands, such as wear-resistant coatings for abrasive materials or precision temperature control for heat-sensitive compounds.

Scalability: Ensure the design accommodates future production scaling—modular components or adjustable parameters (e.g., screw speed) enhance adaptability.

Operational Environment: Factor in maintenance accessibility, energy efficiency and compatibility with auxiliary systems (e.g., extruders, cooling units) to streamline integration.

By systematically assessing material properties, throughput targets and operational conditions, you can optimize barrel performance and longevity while minimizing downtime.

How CHUANGRI SCREW’s Products Address Diverse Industry Demands

Conical Twin-Screw Barrels: Efficiency in High-Calcium Applications

CHUANGRI SCREW’s tapered dual screw barrels are tailored to perform well in situations where high calcium mixtures or reused materials are used during processing tasks. They are made from top-quality materials that offer resistance to wear and stability against heat. Besides that, the addition of coatings boosts their longevity so they can endure harsh conditions without impacting their performance.

Parallel Twin-Screw Barrels: Precision for Uniform Melts

CHUANGRI SCREW’s parallel twin screw barrels have established a standard of precision in extrusion processes compared to conical designs due to their consistent diameter along the entire length that promotes even material flow and reduces shear stress levels effectively—a valuable feature in precision demand applications with low scrap production requirements.

Bimetallic Twin Screws: Durability for Abrasive Materials

CHUANGRI SCREW’s innovative bimetallic twin screws set a standard for longevity by utilizing state-of-the-art HVOF tungsten carbide coating technology to enhance durability significantly. The application includes a spray coating that gives the maximum corrosion and wear protection. Tungsten carbide nickel alloy powder coating achieves a reading of between 1350 and 2100 HV and is best suited to be worked with abrasive or corrosive fillers.

Frequently Asked Questions about Twin Screw Extruder Barrel

Q: What is a twin screw extruder?

A: Twin screw extruder machines function as a result of their strange setup, two perpendicular screws that rotate in opposite directions within a hot barrel. This kind of setup is crucial when it comes to efficiently processing and extruding numerous materials, primarily plastics.

Q: What is the difference between twin screw extruders and single screw extruders?

A: Compared to single screw extruders, twin screw extruders are superior in the homogenous mixing of different ingredients such as fillers and additives and liquids. Mixing performance in single screw extruders would be improved by the use of mixing elements but inferior to that of twin screw extruders.

Q: What is the material and surface treatment used on CHUANGRI SCREW’s twin screw barrels when they handle abrasive or highly viscous products like rubber or engineering plastics?

A: CHUANGRI SCREW’s twin screw barrels use 45# steel shafts with hardened surfaces to the precision and have vacuum pressure impregnation (VPI) coatings. Surface treatments provide increased wear resistance of abrasive materials (e.g., silica-filled rubber) and chemical corrosion by polymers.

Q: How does the design of CHUANGRI SCREW’s twin screw barrels optimize heat dissipation and alignment stability during high-torque operations in tire or cable production?

A: The barrels feature intermeshing twin-screw geometry and forklift-structured support trolleys, ensuring axial alignment under heavy loads. Integrated water-spraying cooling systems reduce thermal stress, while Siemens servo motors maintain torque consistency, critical for tire tread extrusion at 250kW+ power outputs.
